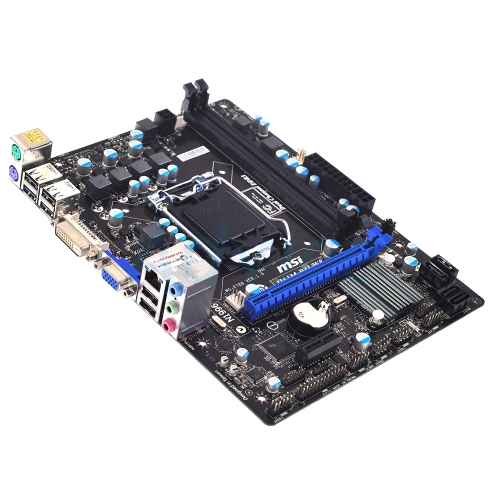

MSI

H61M-P31/W8

3rd Gen Intel® Core™ i7/ Core™ i5/ Core™ i3/ Pentium®/ Celeron® processors for LGA 1155 socket.

1155

Intel® H61 (B3)

1 PCI Express gen3 x16 slot, supports up to PCIe 3.0 x 16 speed
1 PCI Express gen2 x1 slot

Supports two unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600 DRAM, 16GB Max
Supports Dual channel mode

Chipset integrated by Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec

Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111E.

1 x PS/2 Mouse port
1 x PS/2 Keyboard port
6 x USB 2.0 ports
1 x Graphic Card port
1 x DVI-D port
1 x RJ45 LAN Jack
1 x 3 in 1 audio jack

ATX 24-Pin power connector
4-pin ATX 12V power connector
CPU x 1 / System x 2 FAN connectors
Front panel audio connector
Front panel connector
1 x chasis intrusion connector
2 x USB 2.0 connectors
4 x Serial ATAII connectors
1 x Clear CMOS jumper
1 x Serial port connector
1 x Trusted Platform Module (TPM) header
1 x Parallel port connector

The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
