Product

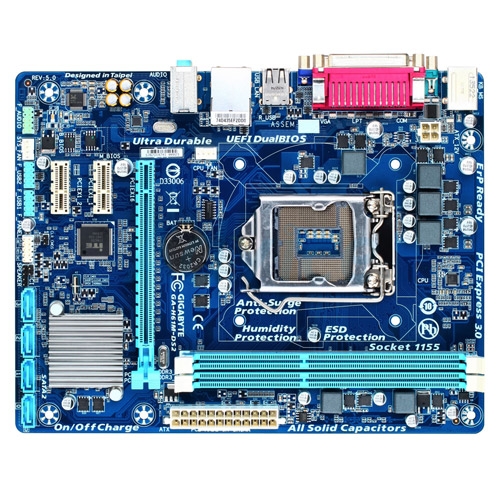

GA-H61M-DS2


รหัส : A0053338OK
ชื่อ : GA-H61M-DS2
ประเภท : Mainboard
รุ่น : INTEL 1155 (VGA On)
ราคา : 1,840
รายละเอียด :

Feature

GA-H61M-DS2

  • All new design of Ultra Durable 4 classic
  • Supports 3rd Gen. Intel® 22nm CPUs and 2nd Gen. Intel® Core™ CPUs (LGA1155 socket)
  • Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
  • Supports 3rd generation PCI-Express interface
  • Industry's Leading All Solid Capacitor Design
  • Enhanced Intel HD Graphics 2000/3000 integrated with the processor
  • Innovative Smart 6 technology for smarter PC management
  • Dual UEFI BIOS protection with 3TB+ HDD boot up capability
GIGABYTE GA-H61M-DS2
Brand :
GIGABYTE

Model :
GA-H61M-DS2

CPU Support :
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
L3 cache varies with CPU

Socket :
1155

Chipset :
Intel® H61

Expansion Slots :
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(All PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage :
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

RAM :
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR3 2200(OC)/1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules

Audio :
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

LAN :
Realtek GbE LAN chip (10/100/1000 Mbit)

USB :
Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Back I/O Ports :
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x parallel port
1 x serial port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)

Internal I/O Ports :
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper

H/W MONITORING :
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control

BIOS :
2 x 32 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

BUNDLE SOFTWARE :
Norton Internet Security (OEM version)

Form Factor :
Micro ATX Form Factor; 22.6cm x 17.4cm

OS Compatidility :
Support for Microsoft® Windows 8/7/Vista/XP

Warranty :
3Y
